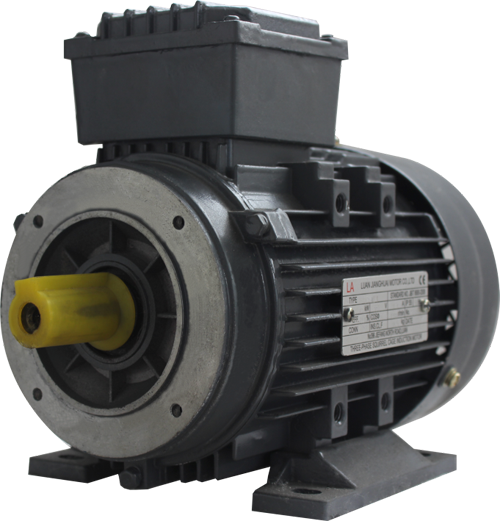

YE2、YE3-63~160系列（鋁殼）高效三相異步電動機
MS、YE2、YE3-63~160 Series High Efficiency Aluminum Frame Three Phase Asynchronous Motor
|
概述 |
Summary |
|
機座號：H63~H160 |
Frame Size: H63~H160 |
|
額定功率：0.12~18.5kW |
Rated Power: 0.12~18.5kW |
|
額定電壓頻率：380V/50Hz |
Rated Voltage and Frequency: 380V/50Hz |
|
極數：2p~8p |
Poles: 2p,4p,6p,8p |
|
防護等級：IP54,IP55 |
Protection Degree: IP54,IP55 |
|
絕緣等級：F |
Insulation Class: F |
|
性能參數：同YSF、YE2、YE3系列 |
Performance parameters: same as YSF、YE2、YE3 series |
結構特點 Structural characteristics
該產品外殼結構件采用高強度鋁合金壓鑄而成，結構緊湊，底腳可拆卸，具有效率高、可靠性高、造型美觀、噪音低、振動小等特點，適用于風機、水泵、機床、包裝機械、木工機械等各類機械傳動設備。
The YE2 series aluminum frame high efficiency motors with compact structure and removable footing, have the characteristics of high efficiency, high reliability, beautiful apperance, low noise, little vibration, and can be applied to a variery of transmisson equiments such as fan, pump, machine tool, packaging machinery, wood-working machinery, etc.
YE2系列鋁殼高效三相異步電動機的外形及安裝尺寸，以及風葉、風罩、接線框蓋等相關配件，與YE3系列鋁殼超高效電動機完全一致。
The YE2 series high efficiency aluminum frame motors’ mounting dimension and accessories including fan, fan cover, terminal box and so on are exactly the same as YE3 series ultra high efficiency aluminum frame motors.
