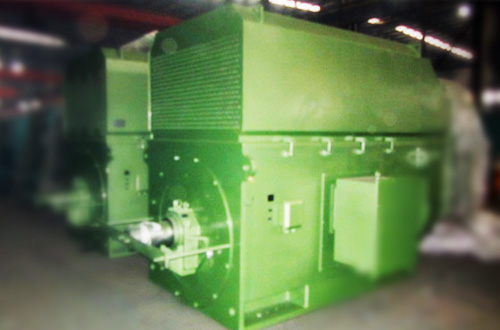

YX, YXKS, YXKK 系列(H710~800)大型高壓高效三相異步電動機
YX, YXKS, YXKK Series (H710~800) large-size High Voltage High-efficiency Motor
| 概述 | Summary |
| 額定功率：450~6300kW | Rate power: 450~6300kW |
| 額定電壓：6kV、10kV | Rate voltage: 6kV, 10kV |
| 機座號： 710~800 | Frame size: 710~800 |
| 極數：4~16極 | Poles: 4~16p |
|
防護等級：Y 系列：IP23 YKS、YKK系列：IP54、IP55 |
Protection degree: Y series: IP23 YKS、YKK series: I IP54, IP55 |
|
冷卻方式：Y 系列：IC01 YKS系列：IC81W YKK系列：IC611或IC616 |
Cooling method: Y series: IC401 YKS series: IC81W YKK series: IC611 or IC616 |
|
能效等級：GB30254-2013 2級 (≥355kW可享受國家惠民產品補貼) |
Efficiency class: GB30254-2013 grade 2 (≥355kW with state subsidies) |
結構特點 Structural characteristics
該系列電機采用箱式鋼板結構，拆下冷卻器或防護罩即可觀察和觸及電機內部，便于電機的安裝維護；轉子采用籠型鑄鋁轉子，一次成型，也可根據客戶需求生產銅條轉子，提高了運行可靠性；定子采用F級絕緣真空壓力浸漬無溶劑工藝處理(VPI)，使電機具有可靠的絕緣性能和防潮、抗沖擊能力；定子和軸承均裝有PT100測溫元件，電機軸承均有不停機注油和排油裝置，提高了電機自身的保護能力和運行效率。當電機功率超過2000kW時，可根據用戶需求，多配一副出線盒，用于引出三相繞組的中性點。
This series motors with box type steel structure, can be observed its interior after removing the cooler or protective cover, and esay to be installed and maintained; The cage structure rotor made by once forming process or copper strip rotor made by mid-frequency welding process, improve the reliability of the motor; Insulation class F stator made by VPI process, ensure the reliability of insulation, moisture-proof and shock resistance; Temperature senor for stator and bearing, non-stop oil filling pipe and oil exit pipe, improve the protection ability and operation efficiency of the motors.When the power is more than 2000kW, according to the requirement of customer, another terminal box can be installed to pick up the neutral point of winding.
該系列產品的外形及安裝尺寸同Y, YKS, YKK系列6kV, 10kV (H710~1000)大型高壓三相異步電動機。
This series motors’ mounting dimension is exactly the same as the mounting dimension of Y, YKS, YKK series 6kV, 10kV (H710~1000) medium-size high voltage motor.
