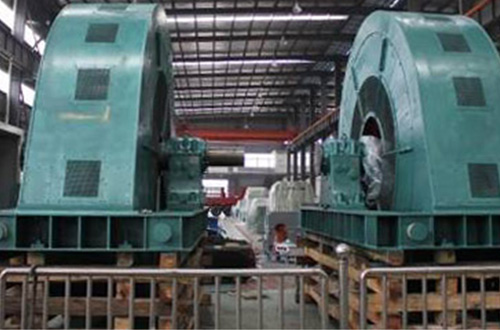

TDMK(TM) Series High Voltage Synchronous Motor

 　　TDMK(TM)系列礦山磨機用大型交流三相同步電動機，符合JB/T1473-2000《礦山磨機用大型三相交流同步電動機技術條件》等國家標準。本系列電動機采用鋼板焊接結構，通風方式為開啟式自然通風，也可制成全封閉管道通風方式。電動機與磨機采用聯軸器連接，只承受扭矩，不承受軸向力和徑向力，建議采用氣動離合聯軸器，利于大負荷起動。座式滑動軸承一般采用油環式結構或復合潤滑（外帶稀油站）結構，視具體結構和負荷而定。座式軸承安裝在底板上，中間有絕緣墊板以防止軸電流的產生。
該系列產品被廣泛應用于礦山球磨機、棒磨機、磨煤機等的傳動。
TDMK(TM) series high voltage synchronous motors meet JB/T1473《Technical conditions of large three-phase AC synchronous motor for mine mill》. This series motor with steel structure, can be produced as IC01 or totally enclosed. The motor should be connected with the coal mill by a coupling, and bear only the torque, not the axial and radial force, it is suggested that pneumatic coupling should be installed to improve the start capability under large load. Sliding bearing can choose the structure of oil ring or combined type with lubricating station according to installationstructure and the load. Sliding bearing is installed on the baseboard with a insulation plate between them to prevent the shaft current.
This series motors can be applied to ball mill, rod mill, coal mill and so on.
