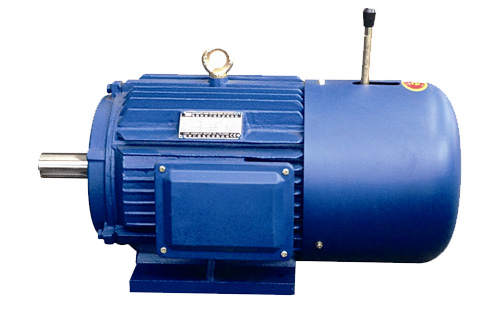

Y2EJ80~225系列電磁制動三相異步電動機
Y2EJ80~225 Series Electromagnetic Brake Three Phase Asynchronous Motor
|
概述 |
Summary |
|
機座號：H80~H225 |
Frame Size: H80~H225 |
|
額定功率：0.55~45kW |
Rated Power: 0.55~45kW |
|
額定電壓：380V |
Rated Voltage: 380V |
|
額定頻率：50Hz |
Rated Frequency: 50Hz |
|
極數：2~8極 |
Poles: 2p,4p,6p,8p |
|
防護等級：IP54 |
Protection Degree: IP54 |
|
冷卻方式：IC411 |
Cooling Method: IC411 |
|
技術數據：同YE2系列 |
Technical data：the same as YE2 series |
結構特點 Structural characteristics
Y2EJ系列電動機為全封閉自扇冷式籠形結構，是在原Y2電機的基礎上，裝有直流電磁制動器，結構簡單、制動迅速、振動小，噪音低、壽命長、安裝維護方便。
該產品適用于起重設備的卷?yè)P(yáng)行車、電動閥門、機床、木工機械、印刷機械、減速機等各類需要快速、準確停車的各類機械中。
The Y2EJ series motors are produced from the original Y2 series motor by adding a DC electromagnetic brake. It has the characteristics of simple structure, rapid braking, high reliability, low noise, little vibration, and can be applied to hoisting crane, electric valve, machine tool, wood-working machinery, printing machinery, reducer and other machinery which need rapid and accurate braking.
